Micro DC 022 DC Power Socket with 12V
Description of this Micro DC 022 DC Power Socket with 12V DC-022 DC Power Socket with 12V DC/0.5A, With Silicone Waterproof Gasket, 5,000 Cycles Lifespan
Parameter of this Micro DC 022 DC Power Socket with 12V
1. Rating：DC 12V 0.5A
2. Contact Resistance: 100mΩMax
3. Insulation Resistance: 100MΩMin
4. Dielectric Strength: AC 500V for 1min
5. Insertion and withdraw forces: 3-30N
6. Operating Life: 5,000 cycles
7. Salt Spray Test: NSS 24H(Can be customized according to customer requirements）
8.Operating Temperature:-20°C~+70°C

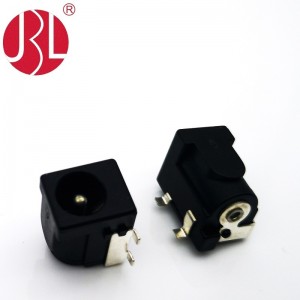

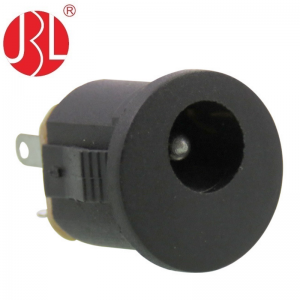

Image of this Micro DC 022 DC Power Socket with 12V
Advantageof this Micro DC 022 DC Power Socket with 12V
Our Factory of this Micro DC 022 DC Power Socket with 12V
Our Service of this Micro DC 022 DC Power Socket with 12V
Certifications of this Micro DC 022 DC Power Socket with 12V
