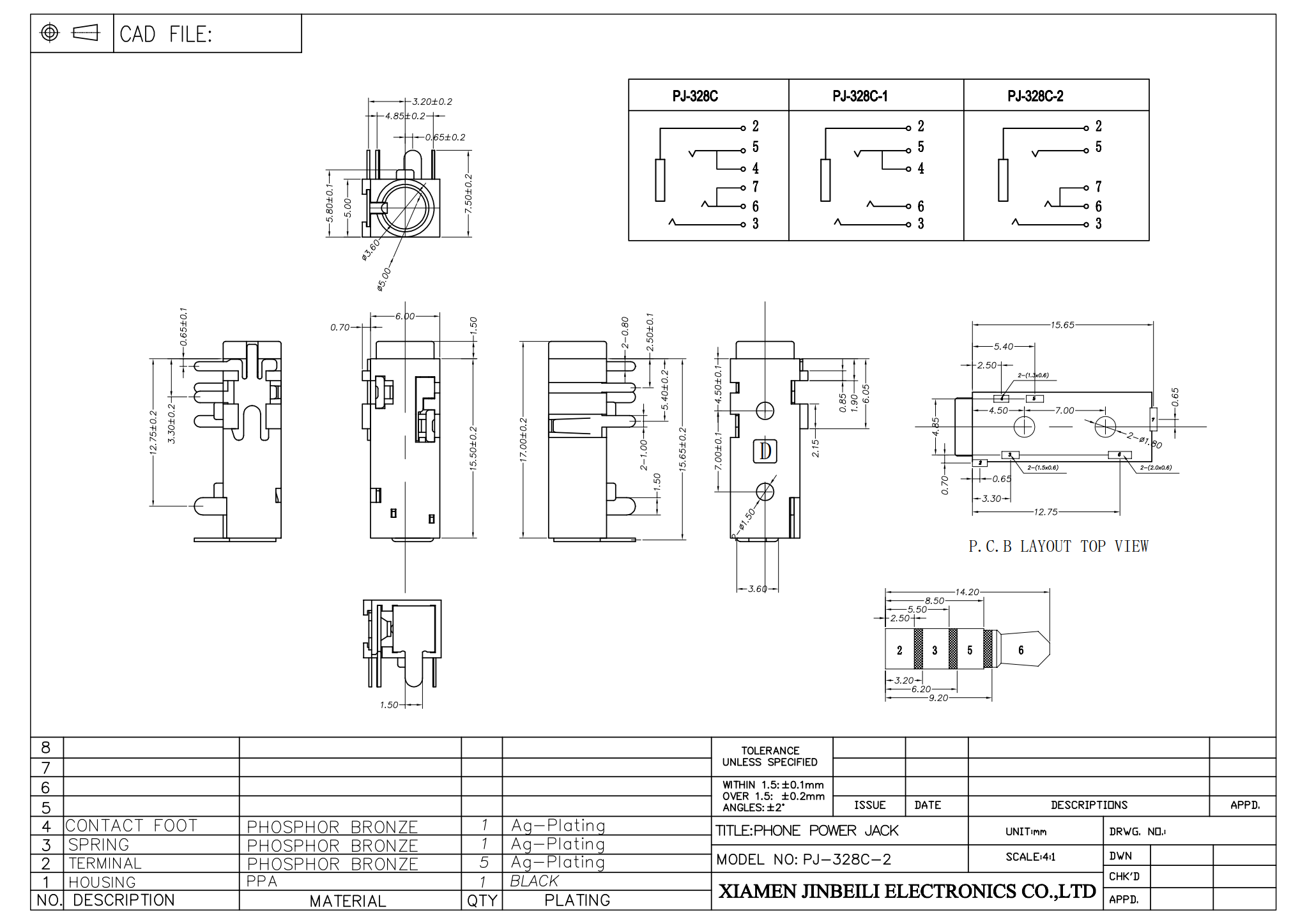

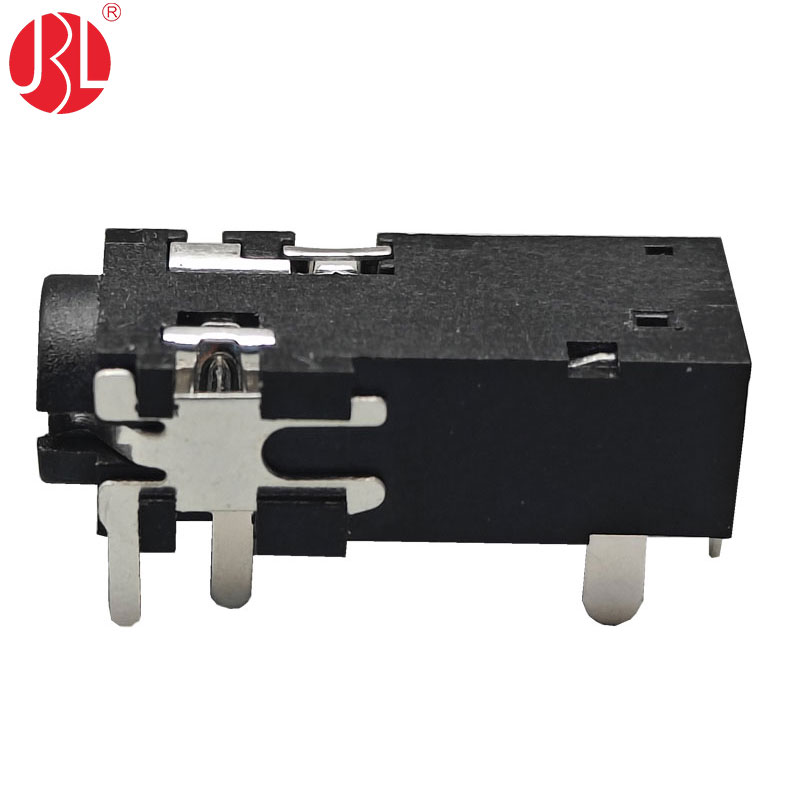

Factory PJ-328C-2 Audio Phone case Jack 5pin Mount DIP Type Phone Jack Headphone Socket

Model Number PJ-328C-2
Place of Origin Chongqing, China
Brand JINBEILI
Packaging PACK
Description PJ
D/C PJ-328C-2
Rating DC 30V 0.5A
Contact Resistance 100mΩMax
Insulation Resistance 100MΩMin
Dielectric Strength AC 500V for 1min
Insertion and withdraw forces 3-30N
Operating Life 5,000 cycles
Salt Spray Test NSS 24H(Can be customized according to customer requirements)
Operating Temperature -20°C~+70°C
